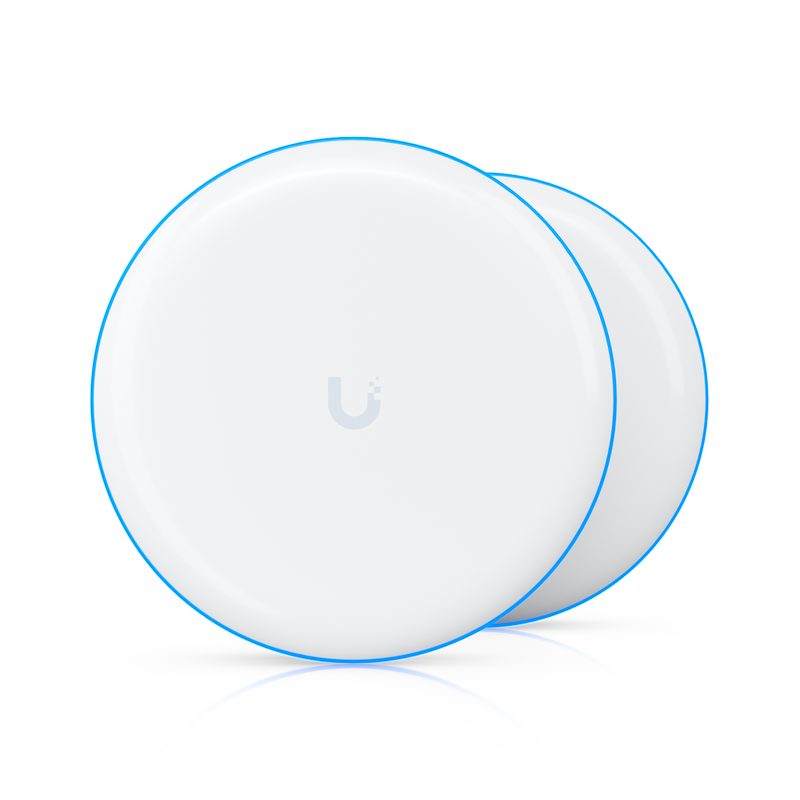

Ubiquiti UniFi UBB 60GHz/5GHz PtP Bridge Kit 6Gbps+
Ubiquiti · UBB-XG · EAN 0810010076120
Lieferzeit auf Anfrage
1114,53 €inkl. MwSt., zzgl. Versand
Größere Stückzahl oder Projekt? Projektanfrage stellen — Antwort kommt vom Fachbetrieb, nicht vom Bot.
Beschreibung
60 GHz wireless point-to-point bridge with a 10G SFP+ uplink for maximum performance and a 5 GHz backup radio.
Technische Daten
- Höhe
- 24,0 cm
- Tiefe
- 47,5 cm
- Breite
- 25,5 cm
- Gewicht
- 6,967 kg
- Dimensions
- ⌀191.8 x 59 mm (⌀7.6 x 2.3")
- Power Method
- PoE++ Passive PoE
- Coverage Area
- 500 m (1,640 ft)
- WiFi Standard
- WiFi 5
- Spatial Streams
- 2
- Weatherproofing
- IPX6
- Hardware: Button
- (1) Factory reset
- Hardware: System
- R/G/B
- Hardware: Weight
- Device: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb)
- Mechanical: Weight
- 80 g (2.8 oz)
- Mounting Locations
- Wall, pole
- Performance: 5 GHz
- 2 x 2 (DL MU-MIMO)
- Performance: 60 GHz
- 6 Gbps
- Hardware: Insulation
- Max. Resistance: 1G ohm @ 50V
- Hardware: Management
- Ethernet Bluetooth
- Performance: 2.4 GHz
- 2 dBi (BLE)
- Performance: 802.11a
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Performance: 802.11b
- 1, 2, 5.5, 11 Mbps
- Performance: 802.11g
- 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- Performance: 802.11n
- 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
- Hardware: Wind Loading
- 56 N at 200 km/h (12.6 lbf at 125 mph)
- Mechanical: Dimensions
- 91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")
- Hardware: Certifications
- CE, FCC, IC, Terragraph
- Hardware: ESD Protection
- Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs
- Hardware: Mount Material
- Stainless steel
- Hardware: Bluetooth (MHz)
- Worldwide: 2400 - 2483.5 MHz
- Hardware: Operating Modes
- PtP
- Hardware: Max. Capacitance
- 1.0 pF @ 1 MHz
- Hardware: Channel Bandwidth
- Main radio (60 GHz): 2160/4320 MHz Backup radio (5 GHz): VHT 20/40/80 MHz
- Hardware: Discharge Current
- 10kA+
- Mechanical: Weatherproofing
- IPX5
- Hardware: Enclosure Material
- Aluminum alloy, UV-resistant polycarbonate
- Hardware: Operating Frequency
- Main radio (60 GHz): 57 - 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide 5150 - 5850 MHz
- Hardware: Pole Mount Diameter
- 1–2.5" (25–63.5 mm)
- Hardware: Data Line Protection
- Up to 2.5 Gbps
- Hardware: Networking Interface
- (1) GbE RJ45 port (1) 1/10G SFP+ port
- Mechanical: Enclosure Material
- Polycarbonate
- Performance: 802.11ac (WiFi 5)
- 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
- Performance: Wireless Security
- WPA2 AES
- Hardware: DC Spark-Over Voltage
- 90V @ 100V/s
- Hardware: Max. Power Consumption
- 29W
- Hardware: Supported Voltage Range
- 48V DC ± 10%
- Hardware: Ambient Operating Humidity
- 5 to 95% noncondensing
- Hardware: Ambient Operating Temperature
- -40 to 55° C (-40 to 131° F)
- Hardware: Max. Impulse Spark-Over Voltage
- 700V @ 1kV/µs
- Hardware: Shock and Vibration Certification
- ETSI300-019-1.4 Standard
