Ubiquiti UICARE-UVC-G6-Pro-Dome-W
Ubiquiti · UICARE-UVC-G6-Pro-Dome-W-D
Lieferzeit auf Anfrage
121,30 €inkl. MwSt., zzgl. Versand
Größere Stückzahl oder Projekt? Projektanfrage stellen — Antwort kommt vom Fachbetrieb, nicht vom Bot.
Beschreibung

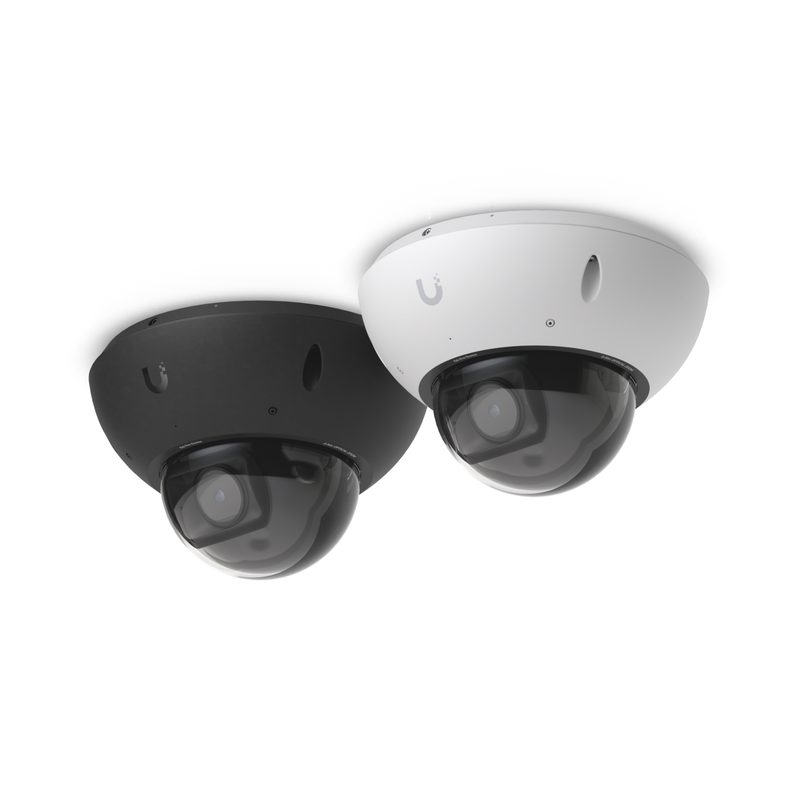

All-weather vandal-proof 4K PoE+ camera with a Multi-TOPS AI engine, 2.36x optical zoom, and a large 1/1.2" CMOS sensor for exceptional low-light clarity and long-range IR night vision.
Technische Daten
- Audio
- Microphone
- Weight
- 183 g (6.5 oz)
- Mounting
- Ceiling, Wall mount (Included) Gang Box Mounting Plate, Camera Dual Mount, Flush Mount, Weather Shield (Optional)
- Connector
- (2) Shielding RJ45
- Standards
- TIA/EIA-568-B.2 ISO/IEC 11801
- Zoom Mode
- 2.36x Optical
- Dimensions
- ⌀163.8 × 108.8 mm (⌀6.45 × 4.28")
- Resolution
- 4K
- Bend Radius
- Min. 50.4 mm (1.98'')
- Flame Rating
- VW-1 (UL1581)
- Pack Options
- Single Unit
- Compatibility
- UVC-AI-Dome UVC-AI-Turret UVC-AI-Pro UVC-AI-DSLR UVC-AI-LPR UVC-G6-Bullet UVC-G6-Edge-Bullet UVC-G6-Pro-Bullet UVC-G6-Turret UVC-G6-Pro-Turret UVC-G6-Edge-Turret UVC-G6-PTZ UVC-G6-Dome UVC-G6-Pro-Dome
- Field of View
- Wide: H: 113.8°, V: 61.9°, D: 134° Tele: H: 45.5°, V: 25.8°, D: 52°
- UV Resistance
- ASTM G 151/154
- Conductor Type
- Stranded copper
- Shielding Type
- S/FTP
- IR Night Vision
- 40 m (131 ft)
- Jacket Diameter
- 6.3 mm (0.25")
- Jacket Material
- Thermoplastic elastomer (TPE)
- Weatherproofing
- IP66
- Available Colors
- Black White
- Hardware: Button
- (1) Factory reset
- Hardware: Weight
- 1.2 kg (2.6 lb)
- Threaded Outlets
- 1 1/2” NPS
- Available Lengths
- 1, 2, 3, 5, 8 m (3.3, 6.6, 9.8, 16.4, 26.3 ft)
- Grid overview: AI
- Enhanced AI
- Grid overview: IR
- 40 m (131 ft)
- Mounting Material
- Stainless steel
- Performance: Lens
- F 5.9-13.8 mm; ƒ/1.5-ƒ/2.9
- Tamper Resistance
- IK10
- Enclosure Material
- Polycarbonate
- Supported PoE Type
- Up to PoE+++
- Conductor Wire Gage
- 24 AWG
- Grid overview: Zoom
- 2.36x
- Hardware: Processor
- Quad core Arm® Cortex®-A53 based chip
- Performance: Sensor
- 1/1.2" 8MP
- Pole Mount Diameter
- 1.5–2" (38–50 mm)
- Supported Data Rate
- GbE
- Grid overview: Sound
- Microphone
- Operating Environment
- Outdoor
- Hardware: Power Method
- PoE+
- Performance: Night Mode
- Built-in adaptive IR LED illumination and IR cut filter
- Performance: Resolution
- 8MP 3840 x 2160 (16:9)
- UniFi Application Suite
- Protect
- Hardware: Certifications
- CE, FCC, IC
- Hardware: Expansion Slot
- MicroSD card
- Hardware: Mount Material
- Stainless steel
- Installation Temperature
- -20 to 60°C (-4 to 140°F)
- Grid overview: Resistance
- IK10
- Ambient Storage Temperature
- -40 to 80°C (-40 to 176°F)
- Grid overview: Weatherproof
- Outdoor Exposed
- Performance: Image Settings
- Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR
- Hardware: Enclosure Material
- Aluminum alloy, polycarbonate
- Performance: Max. Frame Rate
- 30 FPS
- Ambient Operating Temperature
- -30 to 75°C (-22 to 167°F)
- Grid overview: Lens Resolution
- 4K
- Hardware: Max. Power Consumption
- 15W
- Hardware: Supported Voltage Range
- 42.5–57V DC
- Performance: Networking Interface
- GbE RJ45 port
- Supported Gang and Junction Boxes
- 1-gang 2-gang 4" octagon 3.5" round 4" square 4" round European outlet
- Hardware: Ambient Operating Humidity
- 0 to 90% noncondensing
- Hardware: Ambient Operating Temperature
- -20 to 50º C (-4 to 122º F)
