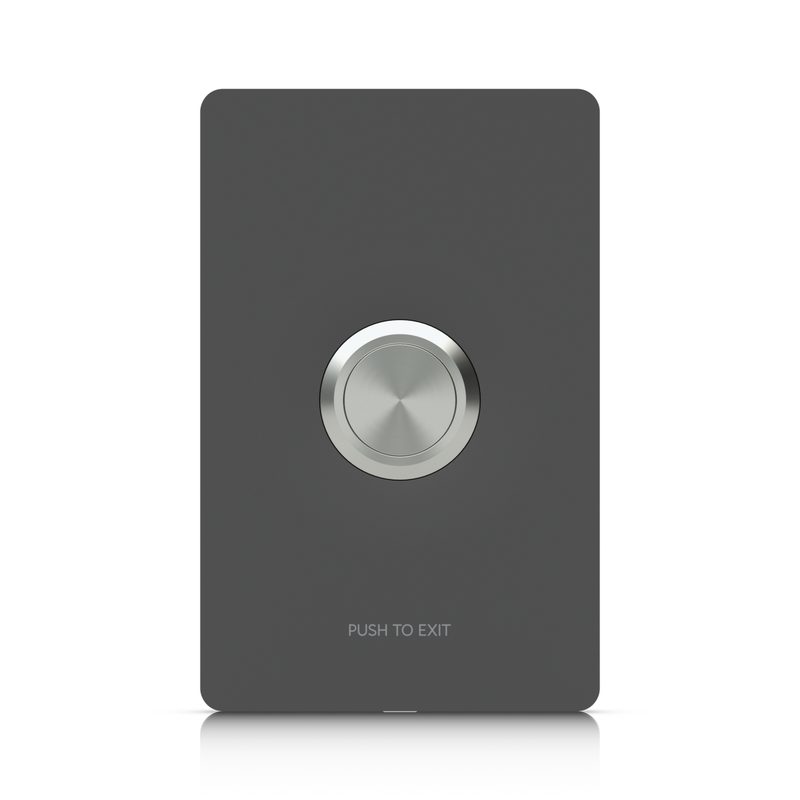

Ubiquiti UniFi Access Button &bull UA-Button

Beschreibung

Push-to-exit button designed for UniFi Access Hubs.

Technische Daten

Gewicht

0,320 kg

Mechanical: Weight

180 g (6.3 oz)

Hardware: Contact Type

(1) Normal open

Hardware: Power Method

UniFi Access Hubs UL 294 Power-limited Class 2 PSU UL 60950-1/62368-1 LPS/PS2 PSU

Hardware: UL 294 Level

Destructive attack: Level I Line security: Level I Endurance: Level I Standby power: Level I

Mechanical: Dimensions

137 x 88 x 38.1 mm (5.4 x 3.5 x 1.5")

Hardware: Certifications

CE, UL 294, CAN/ULC-60839-11-1

Hardware: Contact Rating

30V DC, 2A

Hardware: Mechanical Life

1,000,000 clicks

Hardware: UL 294 Statement

Compliance with IEEE 802.3 (at or af) specifications was not verified as part of UL 294. The equipment is intended to comply with the section of the National Electrical Code, ANSI/NFPA 70, Article 725

Mechanical: Mount Material

Polycarbonate, SGCC steel

Mechanical: Available Colors

Black, white

Mechanical: Enclosure Material

Polycarbonate

Hardware: CAN/ULC-60839-11-1 Grade

Grade assignment: 1

Mechanical: Indoor and Outdoor Use

Indoor only

Hardware: Ambient Operating Humidity

5 to 90% noncondensing

Hardware: Ambient Storage Temperature

-40 to 70° C (-40 to 158° F)

Hardware: Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Hardware: Document number, and issue date and/or revision le

UA-Button, V01
