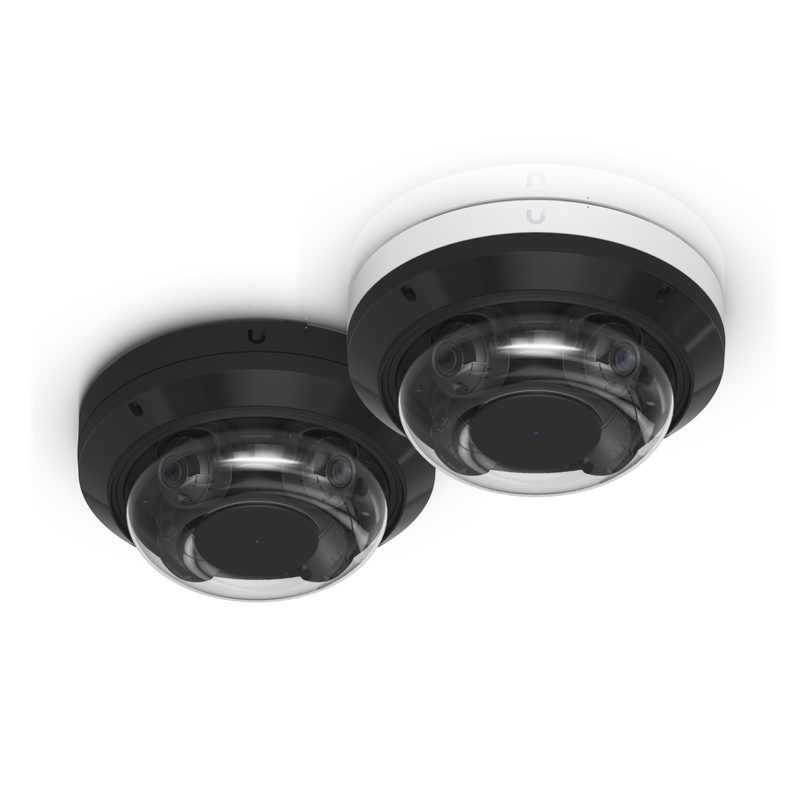

Ubiquiti UVC-AI-MS-4-W

Beschreibung

All-weather PoE++ 32MP multi-sensor camera featuring a Multi-TOPS AI engine, 2.33× optical zoom, 360° IR coverage, and four independently adjustable lenses for seamless wide-area and close-up monitoring.

Technische Daten

Weight

1.7 kg (3.7 lb)

Capacity

128/256/512 GB/1 TB

Mounting

Ceiling mount (Included) Pole, Corner, Arm, Pendant mount (Optional)

Connector

(2) Shielding RJ45

Standards

TIA/EIA-568-B.2 ISO/IEC 11801

Treatment

Painting, powder coating

Zoom Mode

2.33x Optical

Dimensions

⌀255 x 105 mm (⌀10.04 x 4.13")

Resolution

32MP

Bend Radius

Min. 50.4 mm (1.98'')

Form Factor

microSDXC™

Speed Class

Class 10, UHS-I (U1), V10

Flame Rating

VW-1 (UL1581)

Pack Options

Single Unit

Compatibility

UVC-AI-MS-4

Field of View

Wide: H: 108.8°, V: 57.6° , D: 130.8° Tele: H: 42.8°, V: 24.1° , D: 49.1°

UV Resistance

ASTM G 151/154

Conductor Type

Stranded copper

Shielding Type

S/FTP

Endurance (TBW)

128 GB: 64 256 GB: 128 512 GB: 500 1 TB: 1,000

IR Night Vision

20 m (65 ft)

Jacket Diameter

6.3 mm (0.25")

Jacket Material

Thermoplastic elastomer (TPE)

Weatherproofing

IP66

Available Colors

Black White

Hardware: Button

(1) Factory reset

Hardware: Weight

2.4 kg (5.3 lb)

Threaded Outlets

NPS 1 1/2"

Available Lengths

1, 2, 3, 5, 8 m (3.3, 6.6, 9.8, 16.4, 26.3 ft)

Grid overview: AI

Enhanced AI

Grid overview: IR

20 m (65 ft)

Mounting Material

Aluminum alloy

Performance: Lens

(4) F 3.18-7.42 mm; ƒ/1.8-ƒ/2.8

Tamper Resistance

IK10

Enclosure Material

Aluminum alloy

Mechanical: Weight

80 g (2.8 oz)

Supported PoE Type

Up to PoE+++

Conductor Wire Gage

24 AWG

Grid overview: Zoom

2.33x

Hardware: Processor

Dual core Arm® Cortex®-A76 based chip

Performance: Sensor

1/2.8" 8MP

Pole Mount Diameter

2–4" (50–100 mm) 4.5–6" (115–150 mm)

Supported Data Rate

GbE

Hardware: Insulation

Max. Resistance: 1G ohm @ 50V

Management Interface

SDA 6.0

Operating Environment

Outdoor

Hardware: Power Method

PoE++

Mechanical: Dimensions

91 x 61 x 32.5 mm (3.6 x 2.4 x 1.3")

Performance: Night Mode

Built-in (16) IR LEDs with adaptive control

Performance: Resolution

(4) 8MP 3840 x 2160 (16:9)

UniFi Application Suite

Protect

Hardware: Certifications

CE, FCC, IC

Hardware: ESD Protection

Absorbing transient current with response to surge voltage from 100V/s to 1kV/µs

Hardware: Expansion Slot

(2) MicroSD card (1) M.2. 2280 SATA SSD

Hardware: Mount Material

Powder-coated aluminum alloy

Installation Temperature

-20 to 60°C (-4 to 140°F)

Grid overview: Resistance

IK10

Ambient Operating Humidity

5 to 95% noncondensing

Hardware: Max. Capacitance

1.0 pF @ 1 MHz

Ambient Storage Temperature

-40 to 80°C (-40 to 176°F)

Grid overview: Weatherproof

Outdoor Exposed

Hardware: Discharge Current

10kA+

Mechanical: Weatherproofing

IPX5

Performance: Image Settings

Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR

Sequential Read Performance

128 GB: 100 MB/s 256 GB: 100 MB/s 512 GB: 160 MB/s 1 TB: 160 MB/s

Hardware: Enclosure Material

Aluminum alloy, polycarbonate

Performance: Max. Frame Rate

24 FPS

Ambient Operating Temperature

-30 to 75°C (-22 to 167°F)

Grid overview: Lens Resolution

4K

Hardware: Data Line Protection

Up to 2.5 Gbps

Hardware: Networking Interface

(2) RJ45 female connectors

Mechanical: Enclosure Material

Polycarbonate

Hardware: DC Spark-Over Voltage

90V @ 100V/s

Hardware: Max. Power Consumption

34.6W

Hardware: Supported Voltage Range

42.5–57V DC

Performance: Networking Interface

GbE RJ45 port

Hardware: Ambient Operating Humidity

0 to 90% noncondensing

Hardware: Ambient Operating Temperature

-20 to 50º C (-4 to 122º F)

Hardware: Max. Impulse Spark-Over Voltage

700V @ 1kV/µs

Hardware: Shock and Vibration Certification

ETSI300-019-1.4 Standard
